Within farming, you always need to take an eye on details, some kind of “details” something that is not talked about much, but is an important item in working with implements and in agriculture in general and that is the top link for tractor. In this article we will show everything you need to know about top-link for tractor, what it is, what its purpose is, what sizes it has, how they differ and etc. So let’s dive in.
Top link for tractor
A top link for tractor is the upper center arm of a tractor’s three-point hitch which is used to attach different kinds of implements to the tractor such as ploughs, hay tines, the spreader,…Top-link functions are: implement the positioning, implement angle, stability and balance, precision and consistency, terrain adoption, and easy transportation. There are two types of top link for tractor – manual and hydraulic.
How to choose your top link for tractor?
Choosing the right top link for tractor is essential to ensure proper compatibility and effective operation with your implements.
By choosing the right top link, you must pay attention to the following segments of the top link:
The length of the top link for tractor is crucial for achieving proper alignment between your tractor and the implement. It determines the height, angle, and position of the implement when attached to the tractor’s 3-point hitch. Measuring the distance between the attachment points of the implement will help you find a top link with the appropriate length for your setup.
Top links are categorized into different sizes or categories based on their pin-to-pin measurements. Choosing the correct category ensures that the top link fits your tractor’s 3-point hitch and the implement’s attachment points precisely.
Both your tractor and the implement you’re attaching should have matching attachment points within the same category. This ensures compatibility and secure connections between the two.

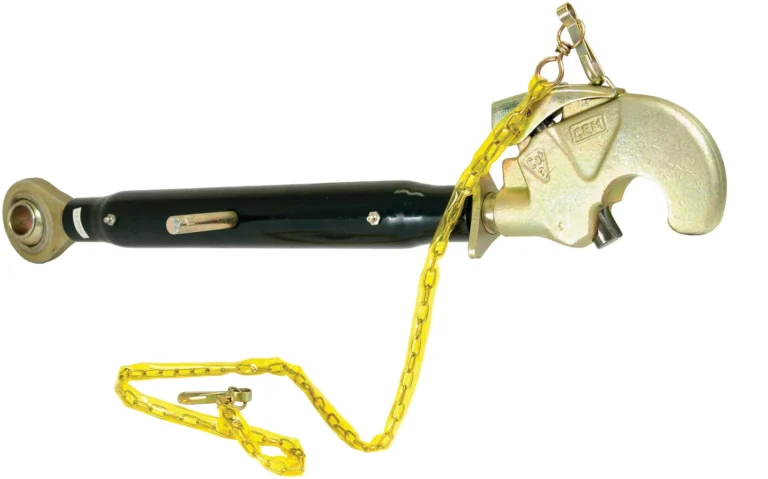

Look at the attachment points on both the tractor and the implement. They should have compatible pin sizes that match the pins on the top link. This ensures a secure and stable connection.They can be in different shapes:Knuckle end,ball end and Q.R hook end.
If you’re considering a manual top link, check the thread size and type of the adjustment rod’s ends. Ensure that they match the threading on your tractor and implement’s attachment points. This is important for proper connection and adjustment.
Measuring the distance between the attachment points on your tractor and implement will help you choose a top link with the correct length. This measurement ensures that the implement’s angle and depth can be adjusted appropriately.
An adjustable top link allows you to fine-tune the length according to the implement’s requirements. Before purchasing, consider performing a test fit to see if the top link can be adjusted to the needed length and if it fits your tractor and implement comfortably.
Check the weight ratings of both the top link for tractor and the implement you’re using. Ensure that the top link can handle the weight of the implement without compromising stability or safety.
Research reputable brands known for producing reliable agricultural equipment. Quality matters to ensure the top link’s durability and performance over time. Reading reviews and seeking recommendations can help you identify trusted brands.
If your tractor is equipped with hydraulics, consider a hydraulic top link for convenient adjustment. Hydraulic systems allow you to adjust the top link from the tractor cab, making it easier to adapt to changing conditions during operation.
Set a budget limit for your top link purchase. While quality is important, finding a top link that fits within your budget ensures a cost-effective solution for your tractor’s needs.
Remember that choosing the right top link for tractor is essential for safe and efficient tractor operation. Taking the time to properly research, measure, and select the appropriate top link will contribute to better performance and longer equipment life. Wish you good luck with choosing your perfect top link for tractor.
What different sizes are there of a Tractor top links?
Category 0 Top Link: Pin-to-pin measurement: Approximately 10 inches to 14 inches (25 cm to 36 cm). This category is often found on smaller compact tractors and implements.
Category 1 Top Link: Pin-to-pin measurement: Approximately 16 inches to 20 inches (41 cm to 51 cm). This is a standard size for many agricultural tractors and implements.
Category 2 Top Link: Pin-to-pin measurement: Approximately 21 inches to 26 inches (53 cm to 66 cm). This category is used on larger tractors and heavy-duty implements.
Category 3 Top Link: Pin-to-pin measurement: Approximately 28 inches to 34 inches (71 cm to 86 cm). This size is suitable for larger tractors and heavy implements.
Category 4 Top Link: Pin-to-pin measurement: Approximately 35 inches to 42 inches (89 cm to 107 cm). This size is often used on large agricultural and industrial tractors.
Adjustable Top Links: Adjustable top links are designed with telescoping or threaded sections, allowing for fine-tuned adjustments to the overall length. These can have various pin-to-pin measurements based on their extended or retracted positions.
Custom Sizes: In some cases, tractor owners or operators may require custom-sized top links to accommodate specific implements or unique tractor setups. These custom sizes can vary widely based on individual needs.
Manual top links for tractor
Manual top links consist of adjustable tubes with a “ball end” at each end. One end of the ball-end is used to attach to the tractor the other to an implement such as a plow or disc harrow. All length adjustments are done manually with manual top links by placing a top link pin into the shaft locking collar.
Pros:Simplicity and reliability,great for basic tasks,minimal maintenance complexity,low cost,better for small to medium-sized tractors
Cons: physical effort, inefficient time management, difficulty in precision, limited adaptability, skill requirement, risk of incorrect settings, possible rust on the threads
Hydraulic top links for tractor
Hydraulic top links as the name suggests enable the top link to be adjusted hydraulically rather than manually. This provides much greater control when adjusting the angle of the attached implement. As with manual top links, hydraulic top links can have ball ends to attach to the tractor and implement. Additionally, for Hydraulic top links on the tractor end a knuckle-type fitting can be used and on the implement end a hook fitting can be specified.
Pros: flexibility and easy adjustment, time saver(“life saver”), convenience, precise implement control, safety and comfort for the driver, consistency in performance, enhanced automation, compatibility with modern tractors, quick implement changes, increased productivity, reduce driver fatigue
Cons: Complexity, frequent Maintenance, higher cost, Hydraulic leaks, tractor compatibility changes, Dependency on tractor engine and hydraulic power
Conclusion
In this article, we have learned everything we need to know about the top link for tractor. It is important to pay attention to the size, and category of the top link and whether it fits the attachment and the tractor. We have explained some advantages and disadvantages of manual and hydraulic top links, and you should definitely research the top link for tractor carefully before your purchases. We hope that we have improved your knowledge about the top link for tractor .
